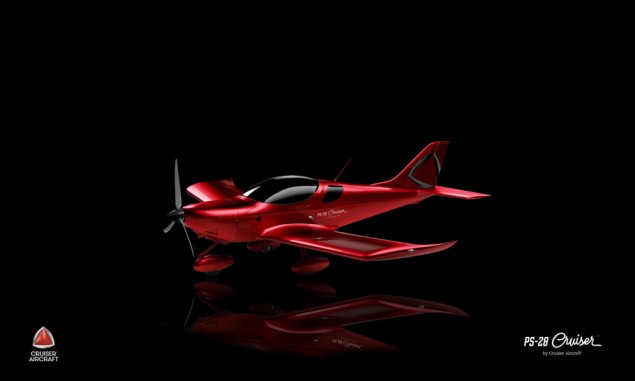

The PS-28 Cruiser is a full-metal, two-seat low-wing monoplane with cantilevered wings and conventional empennage.
The aircraft has fixed landing gear in the form of a nose-type tricycle.
The aircraft was issued a type certificate by EASA in accordance with the CS-LSA standard, and it is authorized for LSA operations in Europe and other regions.

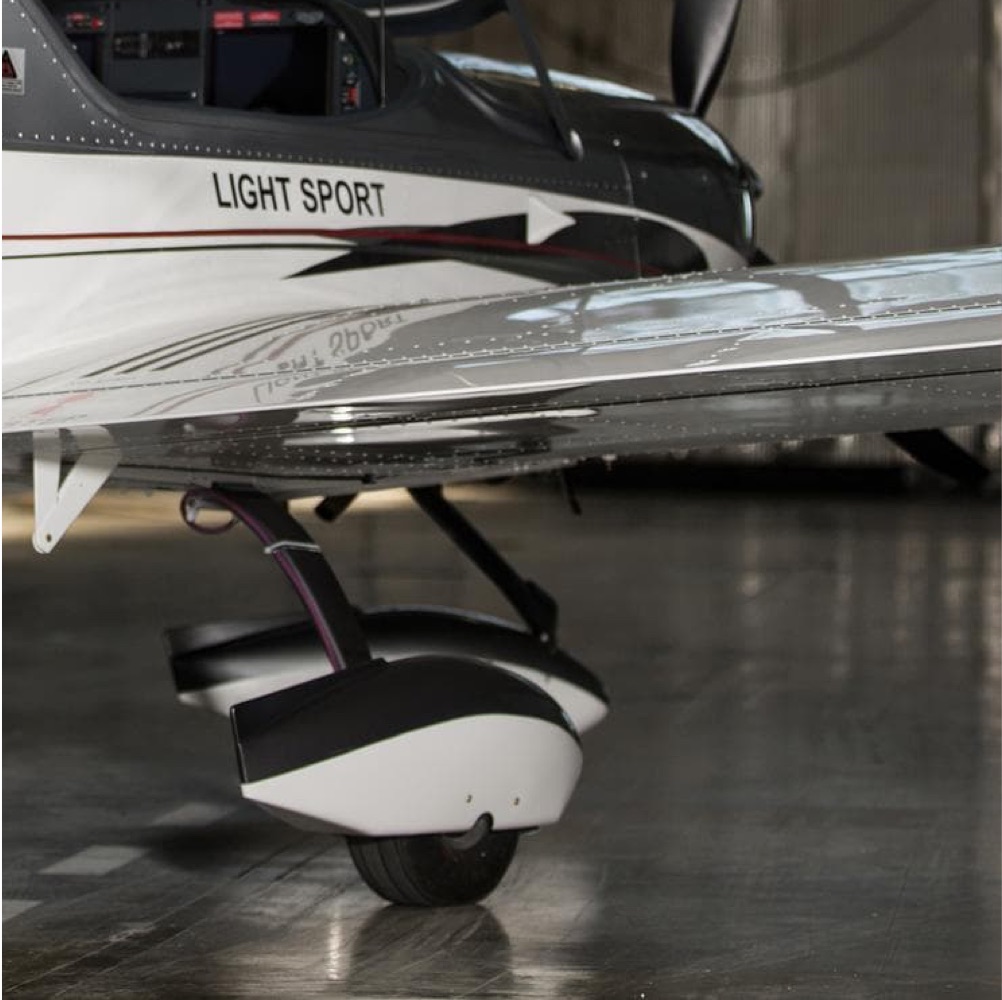

With a rear spar, the wings have an all-metal main spar structure. Six shear bolts connect the wings to the fuselage. A fuel tank with a capacity of 57 liters is located on each wing. Furthermore, each wing has its own lockable storage compartment with a 10 kg load limit.
To prevent icing, the wingtips are built of carbon-glass composite material. The trailing edges of both wings have electrically operated flaps and ailerons. In addition, the right aileron has an electric yaw trim system. The wingtips hold the strobe and position lights.

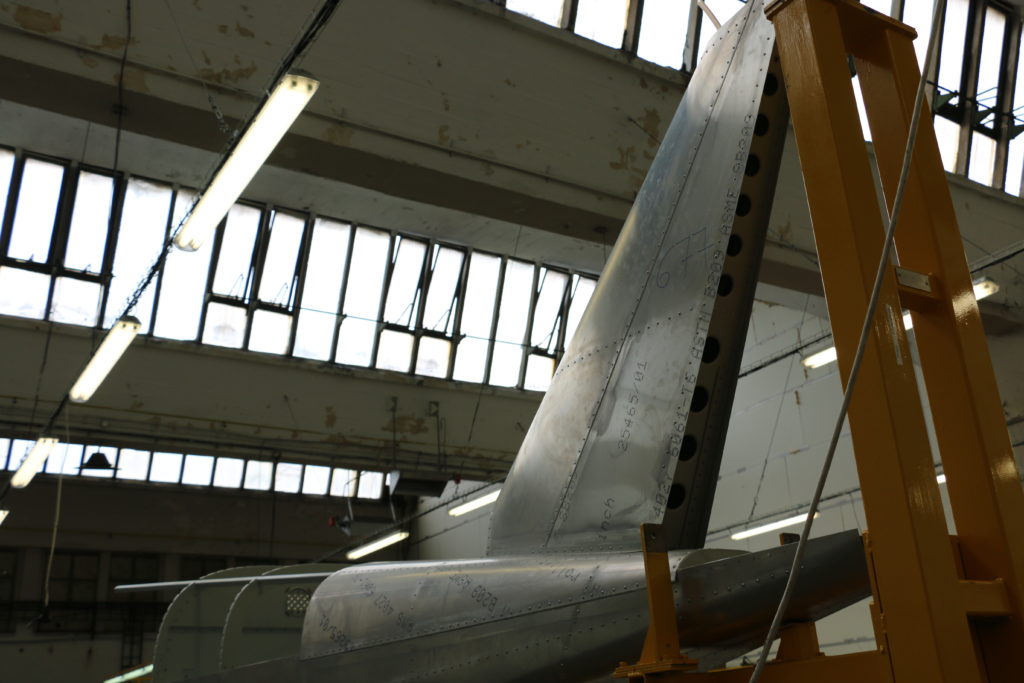

Vertical stabilizer, rudder, horizontal stabilizer, and elevator with pitch trim are the main parts of the empennage.

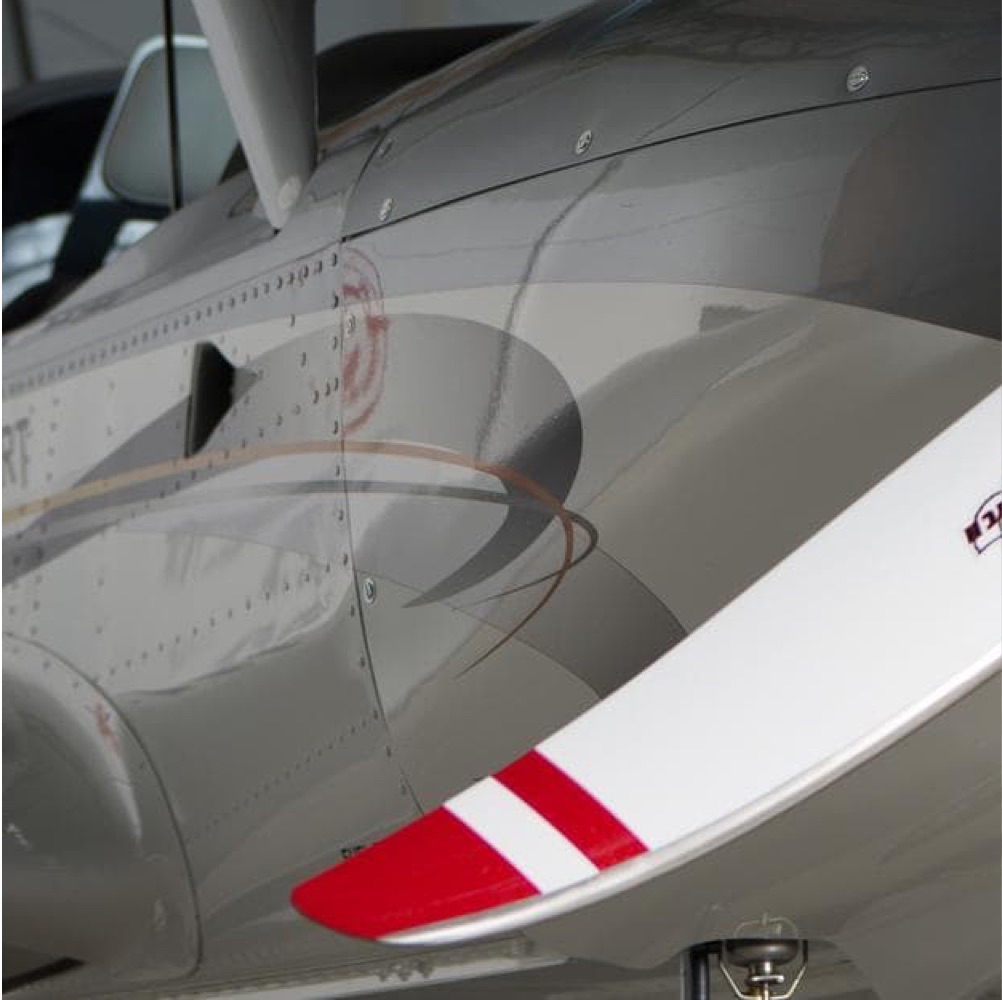

The fuselage is a conventional semi-monocoque, complete metal construction. The cockpit's fixed and movable frames are built of composite material. The main landing gear is attached to the fuselage, while the nose landing gear is attached to the aircraft's firewall.

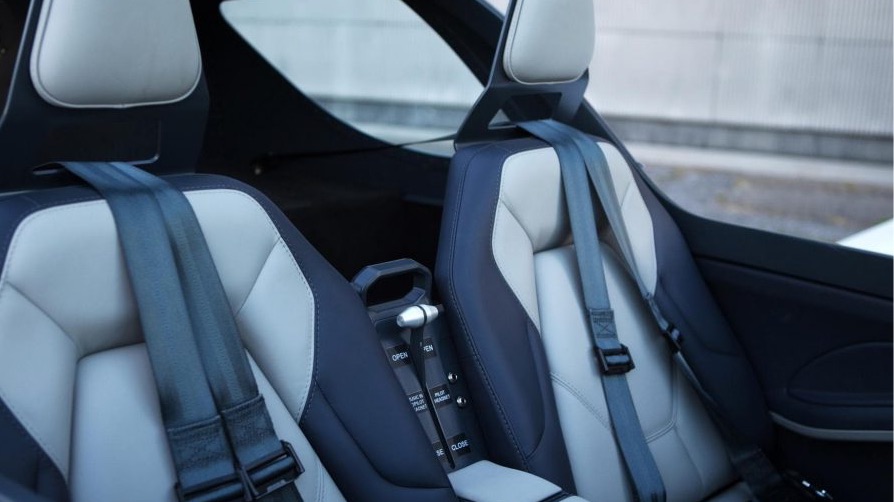

In the LSA category, the PS-28 Cruiser offers the widest and most ergonomic cockpit. A forward-opening canopy and two side sliding windows are also included in the cockpit. Plexiglass is used for all of the windows. A large luggage compartment is located behind the pilot's seats.
The cockpit has a dashboard with three separate panels for all of the instrumentation. The aircraft can be controlled from both seats with controls and pedals on both sides of the cockpit. The wheel brakes are controlled by adjustable pedals, and the throttle is positioned on the central panel.
The PS-28 Cruiser is a strong, safe, and reliable aircraft that can withstand years of heavy use thanks to its all-metal construction, specially selected materials, and advanced manufacturing processes. It's made to allow you to fly regularly and actively so you can concentrate on flying rather than keeping your plane in shape.
